10VDC power HT24V silicon pressure sensor cell

HT24V Silicon Piezoresistive Pressure Sensor

Introduction:

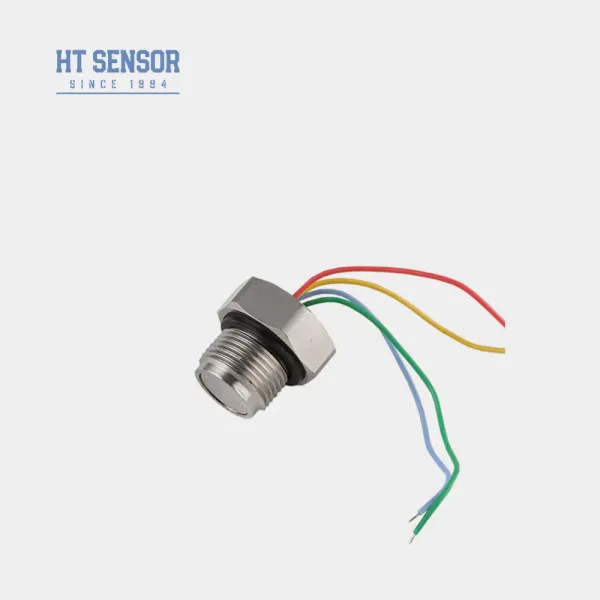

HT24V is a flush diaphragm pressure sensor equipped with a highly stable diffused silicon chip. Its innovative design allows for the transmission of pressure to the sensitive chip through a stainless steel diaphragm, with the added protection of sealed silicon oil .The flush diaphragm structure enhances the ease of cleaning and contributes to its exceptional reliability. As a result, this sensor is a perfect fit for various applications, particularly in industries such as food and hygiene, where stringent requirements for cleanliness and accuracy are crucial.

10VDC Power HT24V Silicon Pressure Sensor with 316L Stainless Steel Housing for Industrial Applications

Product Features:

Utilizing advanced technology and 316L stainless steel housing, along with materials such as titanium and Hastelloy for the diaphrag
Employing thick-film circuits for temperature compensation and zero-point correction.outstanding reliability, repeatability, and stability
Flush diaphragm structure, which makes it easy to clean

Applications:

Suitable for measuring non-corrosive gas and liquid pressure with 316L stainless steel compatibility.
Food and beverage industry.
Industrial process control.
Pharmaceutical industry

Electrical performance:

Power Supply: ≤10VDC
Common Mode Voltage Output: 50% of the input (typical)
Input Impedance:4KΩ~20KΩ
Output Impedance:2.5KΩ~6KΩ
Electrical Connection:100mm high-temperature wire ,paper ribbon cable

Measurement Range		Gauge(G)	10KPa,20KPa,35KPa,100KPa,200KPa,350KPa,1000KPa,2000Kpa
		Absolute(A)	100KPaA,200KPaA,350KPaA,700KPaA,1000KPaA,2000KPaA
		Sealed(S)	3500KPaS,7MPaS,10MPaS,20MPaS,35MPaS
		Typ		Max	Unit
Nonlinearity		±0.15		±0.3	%F.S
Repeatability		0.05		0.1	%F.S
Hysteresis		0.05		0.1	%F.S
Zero Offset Output		0±1		0±2	mV
Full Scale Output	≤20KPa	50±1		50±2	mV
	≥35kPa	100±1		100±2	mV
Zero Offset Temp. Drift	≤20KPa	±1		±2.5	%F.S
	≥35kPa	±0.8		±1.5	%F.S
Full Scale Temp. Drift	≤20KPa	±1		±2	%F.S
	≥35kPa	±0.8		±1.5	%F.S
Compensated Temp.	≤20KPa	0~50			ºC
	≥35kPa	0~70			ºC
Operating Temperature		-20~80			ºC
Storage Temperature		-40~125			ºC
Allowable Overload		Take the smaller value between 3 times the full scale or 60MPa
Burst Pressure		5X the full scale
Long-term Stability		0.2 %			F.S/Year
Diaphragm Material		316L
Insulation Resistance		≥200MΩ 100VDC
Vibration		No change under conditions of 10gRMS, 20Hz to 2000Hz
Shock		100g,11ms
Response Time		≤1ms
O-ring Seal		Nitrile rubber or Fluoro rubber
Filling Medium		Silicon Oil
Weight		~55g
The parameters are tested under the following conditions: Constant voltage of 10V and ambient temperature of 25ºC

Outline Construction
Dimension

Electrical connection and compensation

Selection Examples

10VDC Power HT24V Silicon Pressure Sensor with 316L Stainless Steel Housing for Industrial Applications

Ordering tips

1. Pay attention to the fit between the core size and the transmitter housing during assembly to achieve the
required airtightness
2. During the assembly of the housing, ensure it is aligned vertically and apply even pressure to avoid jamming or damaging the compensation plate.
3. If the measured medium is not compatible with the core diaphragm and the housing material (316L), special instructions should be provided when placing the order.
4. Avoid pressing the sensor diaphragm with hands or sharp objects to prevent damage to the core due to diaphragm deformation or piercing.
5. Keep the pressure port of the gauge pressure core open to the atmosphere and prevent the entry of water, water vapor, or corrosive media into the core negative pressure chamber.
6. If there are any changes to the pin leads, follow the label on the actual core for reference.
